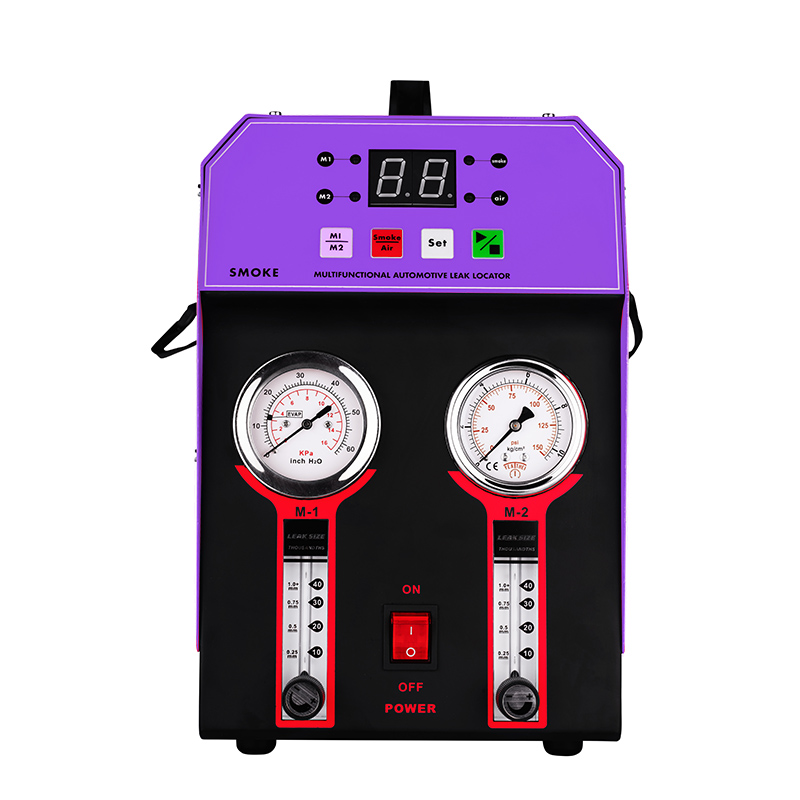

Description
Designed for detecting the leak of pipe systems in cars, motorcycles, such as fuel pipe, air intake system and cooling tank.
It can change special oil (baby oil or mineral oil) into smoke, and blow smoke into sealed pipe system. You can find out leak point in pipe via the smoke and fix it where leak exists.
Inbuilt mini air compressor, instant smoke generation.
Self-protection system keeps machine away from overload.
Easy operation and quick locating the leak parts.
Features
Built-in Air Pump & External Air Port
MCU Control with LED Display
Double Pressure Gauges
Double Flowmeters
Intake System Leak Test
Exhausts System Test
Fuel System Test
Coolant Tank Test
Combustion Chamber Test
A/C System Leak Test
Air Brake System Test
Leakage Quantity Test
EVAP Test Mode
Turbo Test Mode
HD Test Mode
Smoke Test Mode
Air Test Mode
For Various Motor Vehicles, Bus, Truck and etc.
Specification
Voltage: DC12V (Optional AC100-240V Power supply)
Current: 6A
Test Pressure:
EVAP: 5-8 KPa
TURBO: 0.8-1.20 Bar
HD: 2-8 Bar
Air Flow: 1-25 L/Min (Air Pump)
Air Flow: 1-60 L/Min (External Air Source)
Oil Volume: 30 ML
Oil Consumption: 0.5 ML/Min
Test Hose Length: 2.5 M
